Build real-time operational dashboards that update live, adapt per user role + connect directly to the workflows and AI models powering your operations.
CAPABILITY OVERVIEW
Live data, for the people who need it.

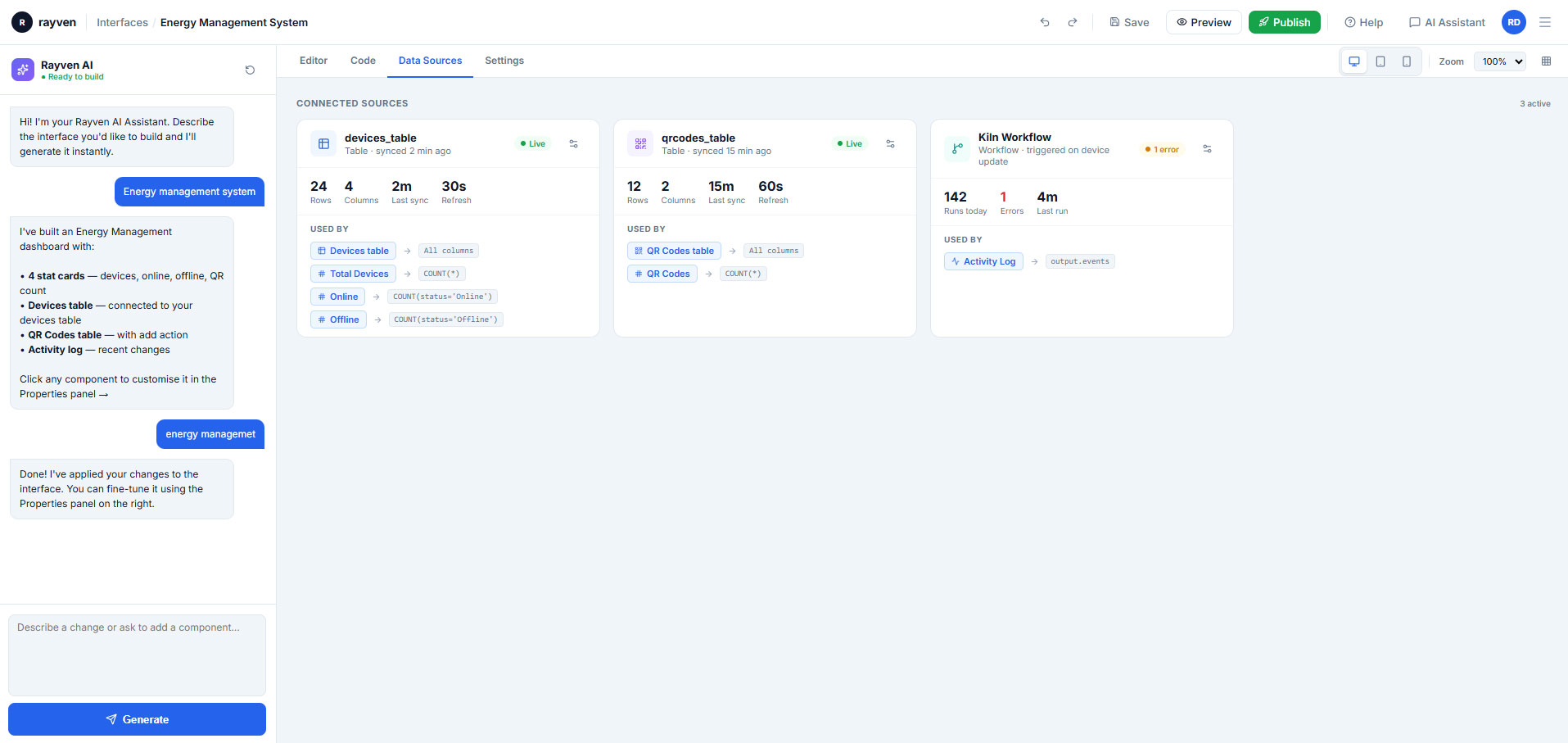

Rayven's dashboard builder puts a real-time operational interface on top of every data source, workflow + AI model in the platform.
Build dashboards using 40+ configurable widgets and a drag-and-drop interface - no design experience required. Full HTML + JavaScript override is available for custom visualisations when the widget library isn't enough.
Every dashboard auto-refreshes every 30 seconds. Data displayed is always the current state of your operation - not a static export, not a scheduled snapshot.
Data sources feeding dashboards include:
HTTP endpoints (POST)
REST APIs (GET, POST + PATCH)
SQL queries vs. MySQL or MSSQL
FTP, FTPS + SFTP file ingestion
AWS S3 bucket polling
AWS Kinesis stream ingestion
AMQP message queue consumption
Outbound connections include:
Button + control widget actions triggering workflow events
Form widget submissions routing data into workflows
Choose from a library of 40+ configurable data visualization widgets - line charts, bar charts, pie charts, scatter plots, tables, KPI tiles, gauges, maps, overlay maps + more. Each widget connects directly to a data source, is configured via a drag-and-drop interface + updates automatically without manual refresh.
Role-based + Label-filtered views
Configure different dashboard views per user role, team, or client. Label-based filtering ensures each user only sees data matching their Label assignment - an operator sees their site, a client sees their own records, a manager sees aggregated views across all. Multiple dashboards can serve the same underlying data in different ways for different audiences.
Real-time 30-second auto-refresh
Every widget on every dashboard updates automatically every 30 seconds from live Cassandra and MySQL queries. No manual refresh, no page reload, no stale data. Dashboards always reflect the current operational state - critical for time-sensitive monitoring, live production oversight + compliance reporting.
Drag-and-drop builder + full code override
Build dashboards using a visual drag-and-drop interface with no coding required. For bespoke visualisations, custom layouts, or advanced interactivity, inject custom HTML + JavaScript directly into any widget. Standard + custom approaches work side by side on the same dashboard.
ML predictions + GenAI interface
Embed ML Chart widgets to display model forecasts, confidence intervals + historical actuals alongside live operational data. Add a conversational analytics interface to any dashboard - trained on your data - allowing users to ask questions about current performance, trends + predictions in plain English.
Mobile-optimised + white-label ready
Every dashboard renders on any device - desktop, tablet + mobile - with automatically adapted layouts. Dashboards are fully white-label configurable: custom domain, logo, colour palette, fonts + imagery. Multi-tenant support allows different branding per client within the same platform instance.
HOW IT CONNECTS: EXPLAINER
Where Dashboards + Visualizations fit in theRayven Platform stack.
Dashboards sit at the top of the Presentation Layer - the interface through which operational users interact with everything the platform produces.
Data flows in from across the platform:
The Data Layer provides real-time Cassandra time-series data + MySQL table records
The Execution Layer feeds workflow outputs, ML predictions + GenAI responses
API endpoints expose external data feeds that dashboard widgets can query directly
Dashboards are not read-only. Dashboard controls - buttons, dropdowns + input fields - trigger workflow events in the Execution Layer, enabling operators to take action directly from the interface without switching tools.
Real-time fleet operations dashboard for a mining site
An operations team monitors 500 assets across three sites from a single dashboard. Per-asset KPI tiles show current payload, fuel + cycle count. A map widget displays GPS positions in real-time. An ML Chart widget overlays predicted failure probability per asset. A site-level filter allows the team to switch between sites. Threshold alerts fire to the same dashboard as inline notifications when any asset breaches a limit.
Multi-department BI dashboard for a retail chain
A retail operator builds role-specific dashboards for store managers, regional leads + the finance team - all from the same underlying data. Store managers see their own store's sales, stock + labour data. Regional leads see aggregated performance across their stores. The finance team sees consolidated revenue + cost metrics. Label-based access control ensures no user sees data outside their scope.
White-label client portal with live operational dashboards
An MSP builds a branded client portal with per-client dashboards surfacing operational KPIs, asset status + compliance metrics. Each client accesses their own dashboard via a custom domain with the partner's branding. The underlying platform is shared infrastructure - Label isolation keeps each client's data separate. Clients experience a purpose-built portal; the MSP delivers it without building a custom frontend.
Rayven Dashboards + Visualizations FAQs:
Dashboards auto-refresh every 30 seconds by default. Each widget queries its configured data source - Cassandra, MySQL or an API endpoint - on the refresh cycle. Data displayed always reflects the current state of the underlying source. For use cases requiring more frequent updates, contact us to discuss configurable refresh intervals.
40+ configurable widgets covering charts (line, bar, pie, scatter, area), tables, KPI tiles, gauges, maps, overlay maps, ML Chart + more. Custom widgets can be built using HTML + JavaScript injection. Rayven's widget library continues to expand with new additions on a regular basis.
Yes. Label-based filtering controls which data each user sees within the same dashboard configuration. An operator assigned a site Label sees only their site's data. A client assigned their Label sees only their records. The same dashboard layout serves multiple audiences with automatic data scoping - no separate dashboard per user required.
Yes. Dashboard controls - button widgets, dropdown menus + text field inputs - are connected to workflow triggers. Clicking a button fires a configured workflow event; a dropdown selection updates a workflow parameter; a form submission routes data into the workflow chain. Operators act directly from the dashboard without leaving the interface.
No. The drag-and-drop builder handles all standard dashboard configuration without code - widget placement, data source connection, filter configuration + layout. For custom visualisations, advanced interactivity or bespoke layouts, HTML + JavaScript can be injected directly into any widget.
Yes. The ML Chart widget displays model predictions, confidence intervals + historical actuals alongside live data. Dashboards can show current operational performance and predicted future state in the same view - giving operators context for decisions without switching tools.
Yes. A conversational analytics widget can be added to any dashboard. The interface is trained on your operational data and allows users to ask questions in plain English - 'which assets are underperforming this week?' or 'what is my projected energy cost for the month?' - receiving accurate, data-grounded responses without writing SQL or running a report.
Yes. All dashboards automatically adapt their layout to the device screen size - desktop, tablet + smartphone. Breakpoints are configurable. Field teams accessing dashboards on mobile devices see a layout optimised for smaller screens without any separate mobile configuration required.
Yes. Custom domain, logo, colour palette, fonts + imagery are all configurable per instance or per client within a multi-tenant deployment. Clients access a branded portal that reflects their own identity - with no visible Rayven branding unless you choose to include it.
Yes. Each widget on a dashboard can query a different data source - one widget shows Cassandra sensor data, another shows MySQL table records, a third shows an ML prediction, a fourth shows an API feed. All update on the same 30-second refresh cycle, giving a unified multi-source operational view in a single interface.
