Rayven Security Stack-smaller

Enterprise IoT Security as-standard.

Keep your data secure at all points and get disaster recovery (DR) protection in-built. Dynamix delivers security without compromising usability.

Enterprise security at all points: security is critical to achieving your sustainability objectives so it's hard-baked into Dynamix.

With valuable data and insights being communicated from the cloud to the Edge, delivering successful outcomes depends on ensuring data integrity, confidentiality and mitigating cyber security risks - something our Dynamix integrated data, AI + IoT platform and solutions built on it has at its very core.

Security without usability would be useless, so we’ve been careful not to encumber end users, too. By leveraging data encryption and some of our own proprietary technologies, we guarantee a brilliant user experience and have made our sustainability solution the safest, most secure in the world.

Dynamix security features included as-standard:

API Authentication (username + multifactor tokens).
Device authentication using device keys with 256-bit SSL encryption.
User data encryption at rest with triple DES + password encryption (SHA256 hash).
User access revalidation via API + dynamic updates via API (push or pull).
Device security health checks via automated polling
and/or pull request.
Solutions can be hosted in Rayven's secure private cloud (optional).
Data encryption of data when in-transit, at-rest or during use (all 256-bit).
Custom security event monitoring and incident handling at user +
device levels
.
Optional single sign-on (SSO) available as-standard.
Forced password requirements, including characters, numbers, etc.
Rayven Defender monitors data flow to devices to identify anomalies,
tampering or error.
Disaster Recovery as-standard to ensure data is not corrupted or lost (Rayven Private Cloud-only).

Discover Dynamix's end-to-end security credentials for yourself: book a demo today.

Dynamix is the most secure IoT platform in the world. Its seamless design means that modules don't have to be integrated together, reducing attack surface, and enabling us to be additional safety measure to be added.

Workflow-Builder-move
Pixel

Thought-out enterprise security fit for modern industrial businesses today + their Industry 4.0 future.

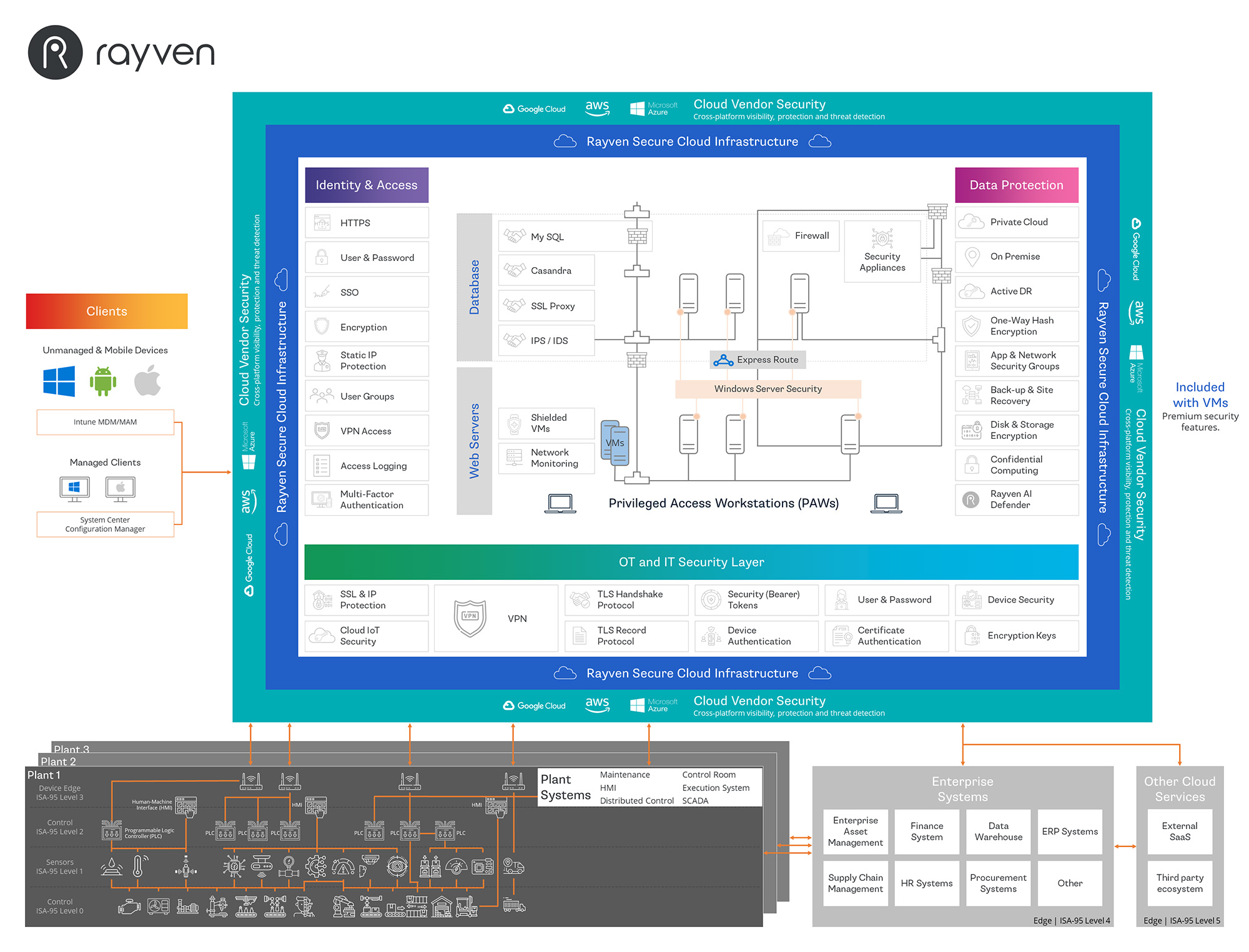

Rayven Security Stack-smaller

High-availability architecture.


Dynamix is designed to always provide a high-level of operational performance and uptime with no single point of failure, achieved with the following:

  • All web servers + databases are mirrored across multiple virtual machines.
  • All databases and services are redundant.
  • Data is replicated across geographical zones.
  • Our system architecture allows us to add/change nodes, storage and services without downtime, so we can easily scale-up resources with no interruption to services.
  • Our systems run on Microsoft Azure infrastructure, which is a highly-resilient, enterprise-grade environment.

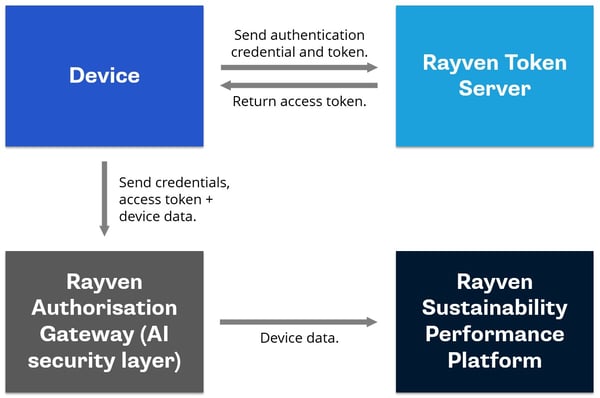

Dynamix's basic device authentication model:

Dynamix-Security-Device-Authentication

Dynamix supports:

  • TLS Handshake Protocol: Client and server authenticates with each other and selects an encryption algorithm prior to sending data.
  • TLS Record Protocol: Works on top of the standard TCP protocol to ensure that created connections are secure and reliable. It also provides data encapsulation and data encryption services.
  • SSL: For encrypting data sent between user operated devices and the platform.
  • Certificate-based device authentication: Private and public key pair allows additional authentication at the physical layer. The private key is stored securely in the device and is not discoverable outside the device.
  • Security (bearer) tokens: To authenticate devices and services to avoid sending keys over the network.
  • Device authentication: Enables the client and server to authenticate each other by device ID.
  • Database encryption: (Private cloud only), encrypt structured database content at-rest.
  • SFTP: Establish a secure connection to transfer files and traverse the file system on both local and remote systems.
  • Username and password: Client and server authentication via username and password.
  • VPN: Security at the whole-of-server level for devices and/or users to connect to the platform (only available for private cloud customers).

Download our brochure.

Discover what makes Rayven's technology, data science and industrial expertise world-leading and how your business can benefit from it.

Who is Rayven Brochure

Dynamix complements your infrastructure, it doesn’t compete.


Dynamix and the  solutions built on it can be deployed on your existing infrastructure, in the Rayven private Cloud, or on-premise. With enterprise security built-in, our solution can be easily configured, deployed and maintained without an IT team’s involvement, putting you in total control.

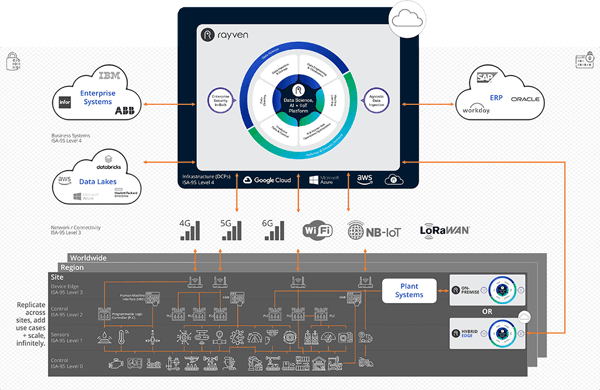

Rayven ISA95 FULL - smaller

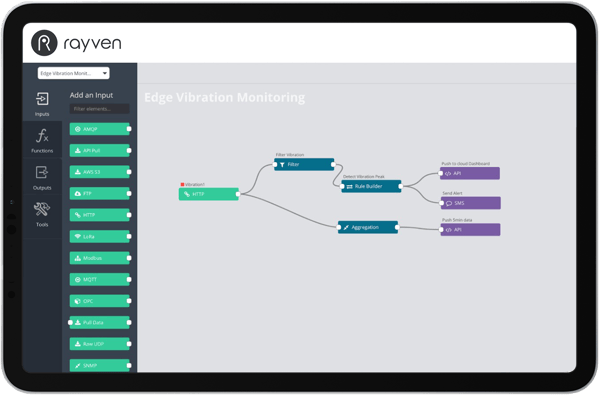

Edge-Configure-1

Edge Compute: Do everything you need at the Edge.


Our Sustainability Performance Platform and solutions make managing + scaling at the Edge beyond simple.

Using a 'lite-version' of our Workflow Builder, Edge Compute, you can access and control your Edge device configuration, update them, and manage them from anywhere at anytime - even in the field.

Discover why Dynamix is a world-leading data, AI + IoT platform.

Smart-Factory-thin

Robust, industrial-dedicated technology

The only fully-featured, all-in-one platform built for industry that combines data, AI + IoT capabilities seamlessly - with no hidden costs.

interoperable-blue

Extreme interoperability

Our technology integrates with any machinery, systems, technologies and data stores to effortlessly create a real-time single source of truth.

data-science-1

One platform, multiple use cases

Get real-time monitoring, predictive insights, and AI-led productivity solutions - or anything else - in one platform.

lego

Ready-to-deploy or create from scratch

Adopt ready-to-deploy solutions or create them yourself using easy-to-use, codeless interfaces.

low-price

Low cost + affordable for all

Works with what you have, pay only for what you use, and it's the only Industry 4.0 platform you’ll ever need.

scale-blue

Fast-to-deploy, infinitely scalable

Start with one device and a single solution, end with millions across hundreds.

cloud-blue

SaaS-based, Edge-ready

Our technology doesn’t require IT support, can be deployed anywhere, and supports Edge processing.

data-security-1

Enterprise security as-standard

Dynamix is built with security as a top priority, so our proprietary security architecture ensures your data is secure at all points.

infinity-3

End-to-end services + 24/7 support

We can help you with data science and machine learning, solution design, build, deployment, scaling, optimization, plus provide 24 / 7 technical support.

See Rayven in action

One of our data science, AI + IIoT specialists will contact you for a live one-on-one demonstration or to answer any questions.
